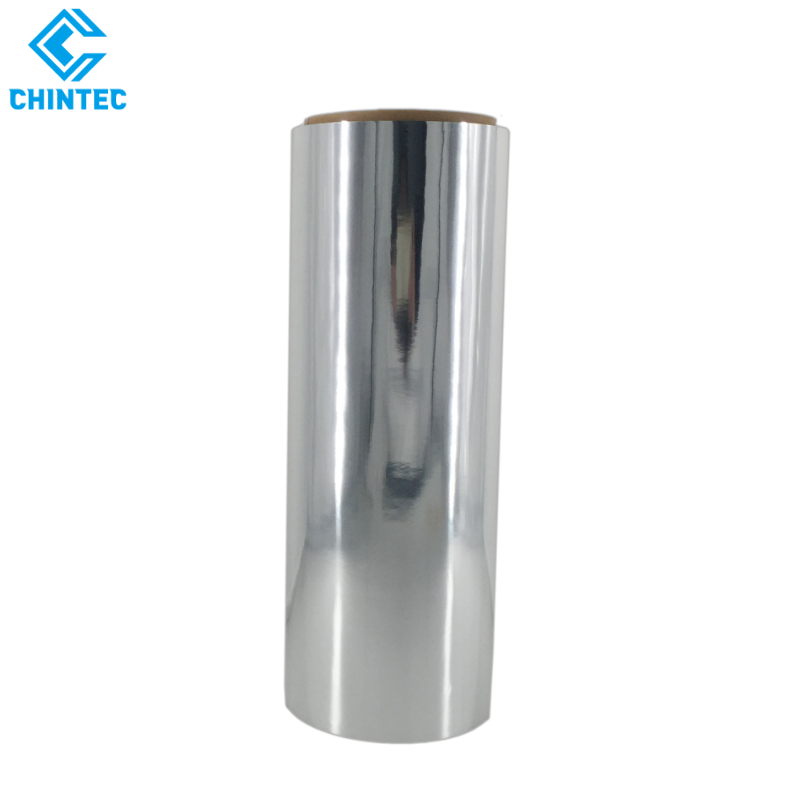

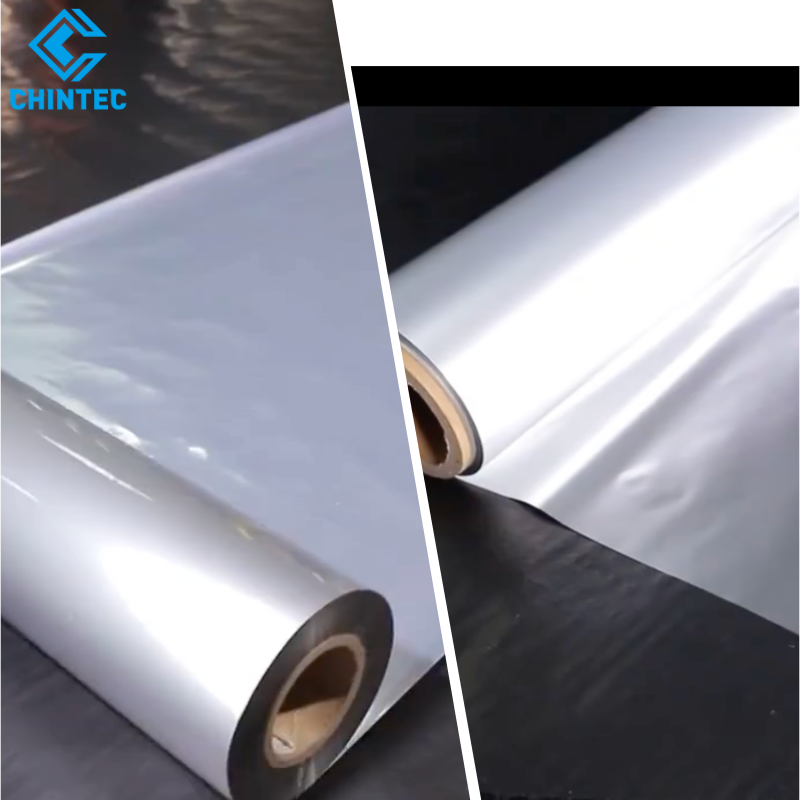

Excellent Cold Resistance and Heat Sealing Performance Vacuum Metallised CPE Film, Milky White or Silver Appearance

Vacuum Metallised CPE Film is produced by coating a thin layer of metal aluminum on the surface of CPE (casting polyethylene) film by the process method of vacuum aluminum plating, which is passed through high temperature under a high vacuum. The metal aluminum is melted and evaporated so that the vapor of aluminum is deposited on the surface of CPE film, then the surface of the plastic film has a metallic luster.

The VMCPE film has excellent cold resistance that enables it to meet a temperature range from  -40°C to +80°C.
It is also having excellent heat-sealing performance that enables it to composite directly with BOPP, PET, and Nylon films.

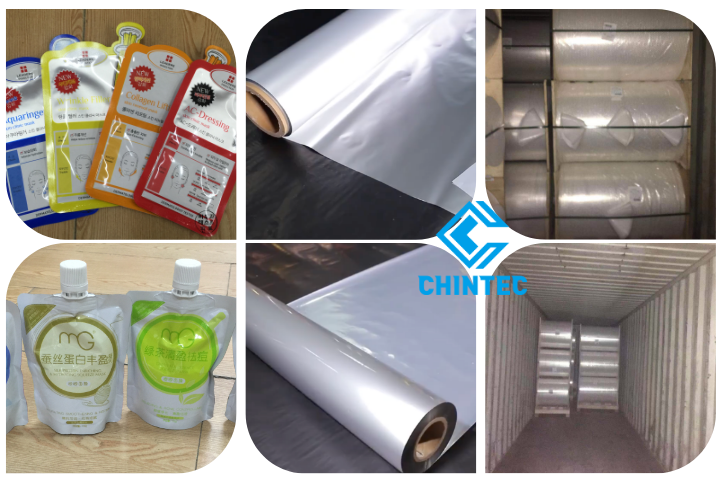

It is widely used in the flexible packagings of coffee, preserved fruit, frozen and boiled food, daily necessities, puffed food, as well as the field of labels and stickers.

As a leading professional China Vacuum Metallised CPE Film manufacturer, we are producing the VMCPE film with uniformity thickness of the aluminum layer, which is under 1.2 ohmic resistance. Our VMCPE film has strong adhesion, refusing aluminum transfer or delamination after being compounded, even boiled under 90°C/B0mins.

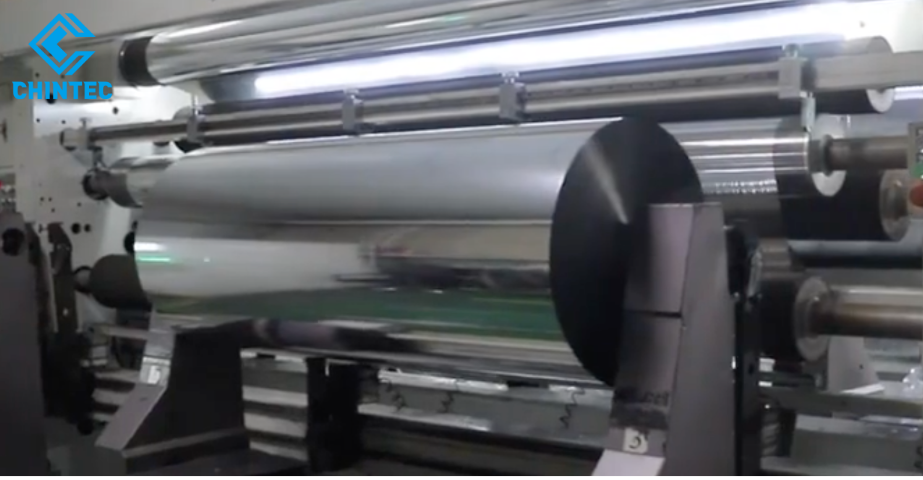

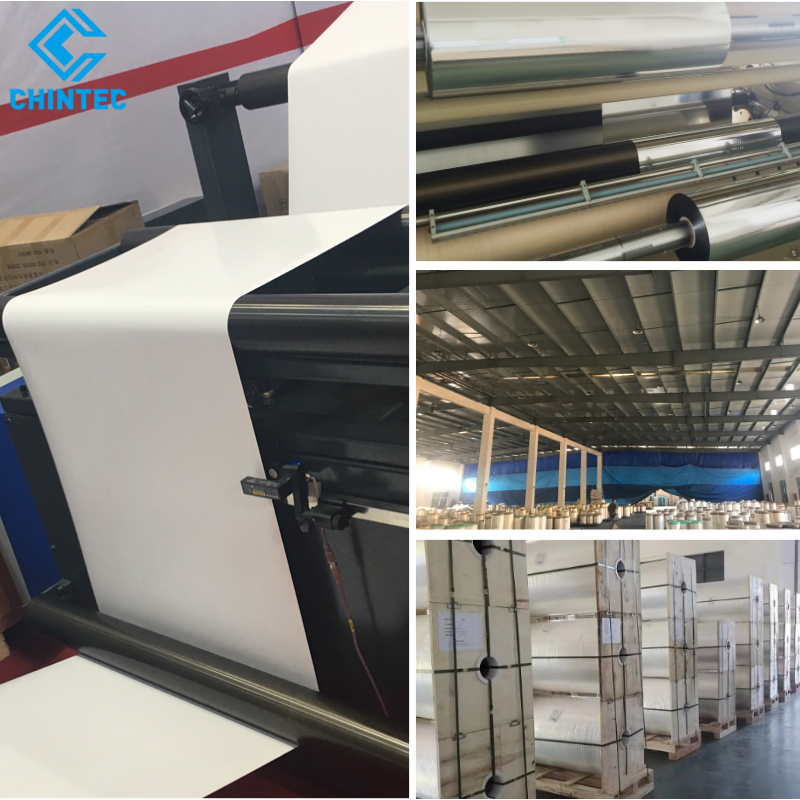

We Chintec is holding a monthly capacity of 5,000 MTs, powered with 16 metallizing and coating producing lines of brands of Leybold, Applied Materials, and Daily, yielding thickness from 18μm to 100μm.

We are committed to serving a very good price Vacuum Metallised CPE Films while maintaining high product quality.
The certificates our product granted include FDA, MSDS, RoHS, REACH, and so on.

Specifications
	Materials:	casting polyethylene (CPE) film
	Thickness:	18micron ~ 100micron
	Inner Core:	3" (76mm), 6" (152mm)
	Reel Width:	300mm ~ 2500mm
	Reel Length:	3000m ~ 18000m (upon thickness)
	Thickness of Alu. Layer:	150 ~ 2000 Å, OD 1.6 ~ 3.0μm, 1.0 ~ 3.0 Ω/□
	Application:	food packaging, eco-friendly packaging, medical packaging composite material,
	Shelf Life:	12 months
Characteristics
● Excellent Heat Sealing Performance ● Uniform Aluminum Layer Thickness ● Excellent Cold Resistance		● Anti-aging ● Easy Release ● Good Appearance Quality
Storage Guide
1. Avoid direct sunlight or drenching 2. Avoid impact	3. Store below 25℃                                                  4. Humidity below 65% RH



Types of Aluminum Vacuum Metallised Film
Vacuum Metallised Biaxially-oriented Polyester Film ( VMBOPET Film )		Vacuum Metallised Casting Polypropylene Film ( VMCPP Film )
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● Environmentally-friendly, No Odor Nor Toxicity  ● High Barrier to Water Vapor and Gas ● Good Stiffness & Bonding Strength ● Heat, Sound & Shielding Insulation ● Excellent Metallic Appearance ● Anti-radiation & Anti-vibration ● Fire Retardant & Dust Free	● Food Packaging ● Paper Lamination ● Textile Ornaments ● Medicine Packaging ● Architecture Insulation	● Good Optimal Performance on High-speed Printing ● Good Resistance to Moisture, Oil & Grease ● High Barrier to Water Vapor and Gas ● Excellent Gloss & Transparency ● Good Extension & Flexibility ● Good Heat Seal Property ● Low Static	● Barrier Layer ● Heat Sealing Layer ● Medicine Packaging ● Compound Food Packaging ● Laminated with BOPP & BOPET
Typical Thickness	Get More...	Typical Thickness	Get More...
● 10, 12, 16, 23, 50, 100, 150micron		● 20, 25, 30, 35, 40micron
Vacuum Metallised Biaxially-oriented Polypropylene Film ( VMBOPP Film )		Vacuum Metallised Casting Polyethylene Film ( VMCPE Film )
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● Printing, Heat Sealable, Lamination Grade ● Good Resistance & Printing Performance ● Heat Sealing for Bag Making ● High Uniformity & Gloss ● Easy Tear Performance ● Simplify the Structures ● Good Adhesion Ability ● Lower Cost	● Labels ● Stickers ● Gift Packaging ● Flower Packaging ● Construction Decoration ● Delicate Food Packaging	● Excellent Heat Sealing Performance ● Uniform Aluminum Layer Thickness ● Excellent Cold Resistance ● Good Appearance Quality ● Easy Release ● Anti-aging	● Coffee Bags ● Frozen Food Bags ● Preserved Fruits Bags ● Liquid Detergent Packagings ● Daily Necessities Packagings ● Label & Medicine Packagings
Typical Thickness	Get More...	Typical Thickness	Get More...
● 15, 18, 20, 25, 30, 35, 40micron		● 18, 25, 40, 50, 75, 100micron
Vacuum Metallised Biaxially-oriented Polyamide Nylon Film ( VMBOPA/VMNY Film)		Vacuum Metallised Non-woven Fabric
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● Excellent Permeability to Light, Water & Oxygen ● Strong Aluminum Coating Adhesion ● High Gloss Mirror Appearance ● Extend Food Shelf Life ● Higher Toughness ● Heat Sealable	● Balloons ● Snack Foods ● Christmas Tinsels ● Frozen Vegetable ● Electronic Materials ● Coffee, Tea & Candy ● Sterilized Medical Products	● Light and Heat Reflection ● Heat Insulation ● Soft & Flexible	● Filter Net Layer ● Interlayer of Ice Bags ● For Roof, Wall & Pipe ● Heat Insulation Material ● Frozen Packaging Material
Typical Thickness	Get More...		Get More...
● 10, 12, 15, 25micron



Packaging
For Core 3" (76mm inner dimension)	For Core 6" (152mm inner dimension)
• Overwrapping film, stretched pallet • 4/6/9 reels per pallet  • Max pallet height 2.2m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service	• Suspending/Floating Pallet •  2 or 4 reels per pallet • Max pallet height 2.1m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service
Tips: • Carefully loading, avoid being crashed and prevent from rain and strong sunshine • Stored in clean and dry places • Well piled up, avoid being distorted or damaged by crushing • Keep 2 meters at least away from heating objects

Shipping & Delivery

• Seaport: Xiamen, Shanghai, Shenzhen, etc. • Airport: Xiamen, Shanghai, Guangzhou, etc.



FAQ
About Sample	About Order	About After-sale-service
• Free samples for testing • Roll sized 300mm x 100m, or by sheet A4 • Special requirement accepted • Courier freight afforded by the receiver and will be refunded from the first order • For saving the cost, prepaid is recommended	• Min. Order Quantity: 2MTs (2,000kgs) • Mixed roll width and length accepted • Delivery lead in 25 days for a 40HQ • Payment Terms: T/T, L/C • Price Terms: EXW, FOB, CNF, CIF	• In case any bad quality rolls must be compensated • Quality guaranteed in 12 months
