Transparent BOPP BOPET Laminating Plastic Roll, Self Laminating Roll for Paper Printings

Item No.: LF4202
● Leading Manufacturer ● Premium Quality ● Good Price
Product parameters
Place of Origin: China
Material: BOPP, BOPET
Price: Negotiable
Min. Order Q'ty: 2MTs (2,000kgs)
Delivery Lead: 20 Days
Supply Ability: 1,000MTs/month
Payment Terms: T/T, L/C
Certification: FDA, MSDS, RoHS, REACH
INQUIRY
Description → Specifications & Data → Packaging & Shipping → FAQ & More

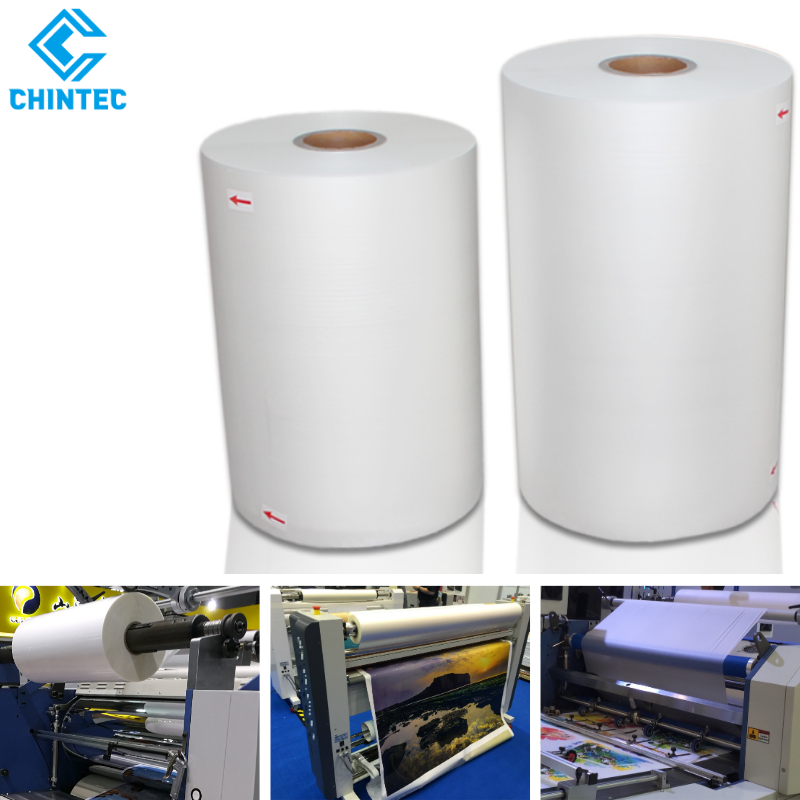

Laminating Plastic Roll is used on roll laminator machines for printed paper substrate lamination work, which comes out of different printing ways such as offset printing, screen printing or digital printing. They mainly see a glossy or matte finish, taking base material of transparent plastic film of BOPP or BOPET.

Size and thickness are the two important factors when choosing plastic laminating rolls, we need to know what maximum laminate width the machine is so as to determine the compatible roll width under the machine's instructions how to handle with. Another key factor matter with how to choose a roll is the paper core. We will need to know what size core is compatible with the laminator. Mostly there are 1 inch, 2.25 inch, or 3 inch cores. We produce all the core laminating rolls out of high-speed co-extrusion lines, adding corona treatment for better adhesion strength. Our laminating plastic roll is non-printed, clear transparent and able to be split into various roll sizes for an order.

As a leading China professional Lamination Film manufacturer and supplier since 2012, we produce roll laminating films with thickness from 10μm to 250μm,  holding monthly capacity 1,000 MTs of Thermal Laminating Film out of 10 high-speed producing lines, and 2,000 MTs of Cold Laminating Film.

we are committed to serving very good price laminating film while maintaining high product quality.
The certificates our product granted include MSDS, FDA, RoHS, REACH, EN 71-3 and so on.





Specifications


Thickness: from 10micron to 250micron
Material: BOPP/BOPET ( + EVA)
Inner Core: 1" (25mm), 2.25" (58mm), 3" (76mm), 6" (152mm)
Roll Width: from 180mm to 1880mm
Roll Length: from 300m to 6000m
Corona Treatment: Single or double sides
Surface Tension: 38/40/42/52 dynes
Shelf Life:

12 months



Applications


● Menus
● Brochures
● Magazines
● Documents
● Sweet Boxes
● Shopping Bags
● Textbook Covers




Operation Guide

Compound Temperature:  85℃ - 105℃ (185℉ - 221℉)
Compound Pressure: 10-18 mpa
Compound Speed: 10-60 m/min



Classifications of Lamination Film (of both Thermal/Hot/Dry and Cold/Wet)

By Format By Function By Transparency By Finishing
● Roll Lamination Film
● Pouch Lamination Film
● Sheet Lamination Film



● UV endurable
● Scuff-resistant
● Finger-print-free
● Super sticky



● Transparent
● Metalised
● Holographic
● Lenticular
● Glitter


● Glossy
● Matte
● Soft-touch
● Scratch resistance
● Textured
● Chemically treated




Packaging
For core 1" (25mm) or 2.25" (58mm) For Core 3" (76mm inner dimension) For Core 6" (152mm inner dimension)
• 6/9/12 rolls a carton (as per request)
• 9 to 36 cartons a pallet (as per request)
• Max pallet height 1.5m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
• One roll one carton
• 9 to 36 cartons a pallet (as per request)
• Max pallet height 2.2m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
• Floating pallet
• One to three rolls a pallet
• Max pallet height 2.1m
• Weight according to roll sizes
• Measures according to roll sizes
• Available to customized service
Shipping & Delivery
• Seaport: Xiamen, Shanghai, Shenzhen, etc.
• Airport: Xiamen, Shanghai, Guangzhou, etc.


FAQ
About Sample About Order About After-sale-service
• Free samples for testing
• Roll sized 300mm x 100m
• Special requirement accepted
• Courier freight afforded by the receiver and
will be refunded from the first order
• For saving the cost, prepaid is recommended

• Min. Order Quantity: 2 tonnes (2,000kgs)
• Mixed roll width and length accepted
• Delivery in 25 days for a 40HQ
• Payment Terms: T/T, L/C
• Price Terms: EXW, FOB, CNF, CIF


• In case any bad quality rolls must be compensated
• Quality guaranteed till 9 months
