| Product parameters | |
| Place of Origin: | China |
| Material: | BOPP Film |
| Price: | Negotiable |
| Min. Order Q'ty: | 2MTs (2,000kgs) |
| Delivery Lead: | 20 Days |
| Supply Ability: | 1,000MTs/month |
| Payment Terms: | T/T, L/C |
| Certification: | FDA, MSDS, RoHS, REACH |
BOPP Thermal Laminating Film is pre-glued with EVA, or said to consist of two layers: BOPP+EVA.

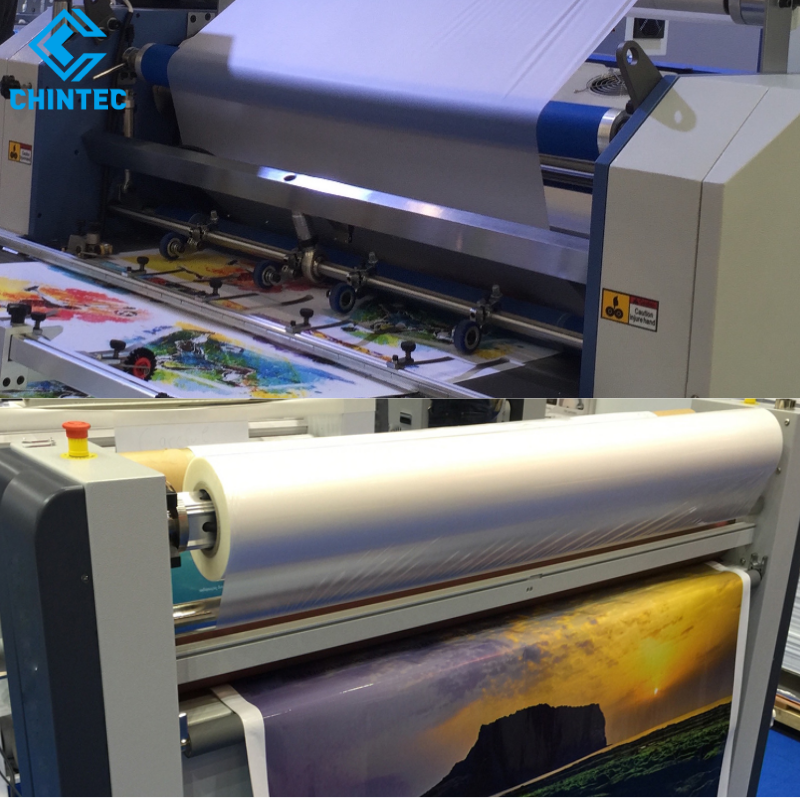

It is used by heating the adhesive onto laminated substrates like paper or paperboard, through a hot or dry laminator machine under certain temperature, pressure, and speed.
Compared with wet or cold lamination film, the thermal lamination film is more convenient at operation, while costing overwhelmingly less.

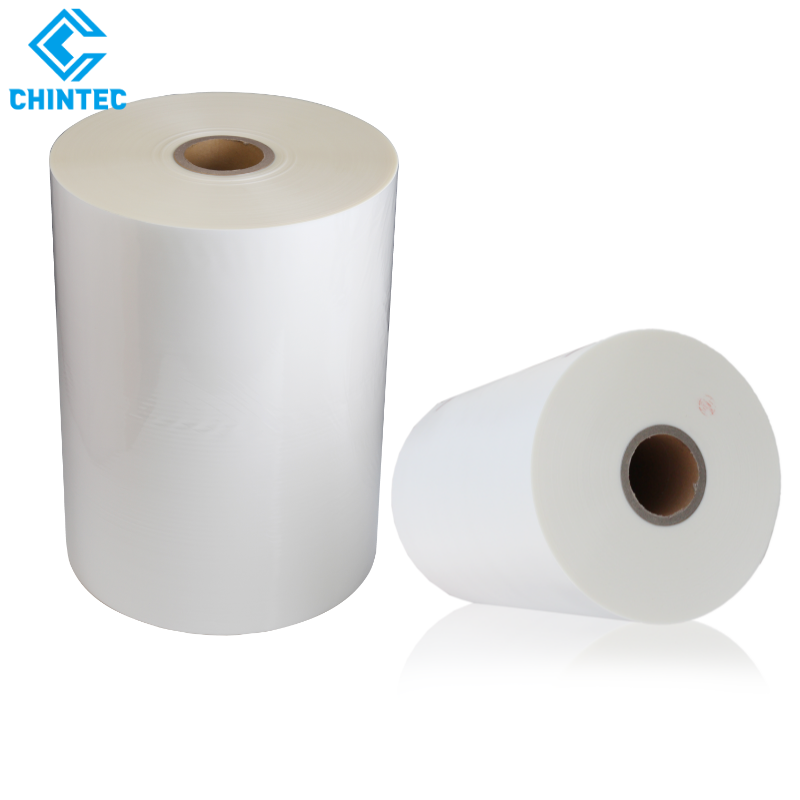

Size and thickness are the two important factors when choosing BOPP thermal laminating film rolls. It can be ranged from 180mm to 1880mm wide and 300m to 4000m long, thickness from 15micron (10BOPP+5EVA) to 30micron (18BOPP+12EVA), of which are coated with a glossy, matte, scuff-free, soft-touch, textured, holographic or metallic finishing.

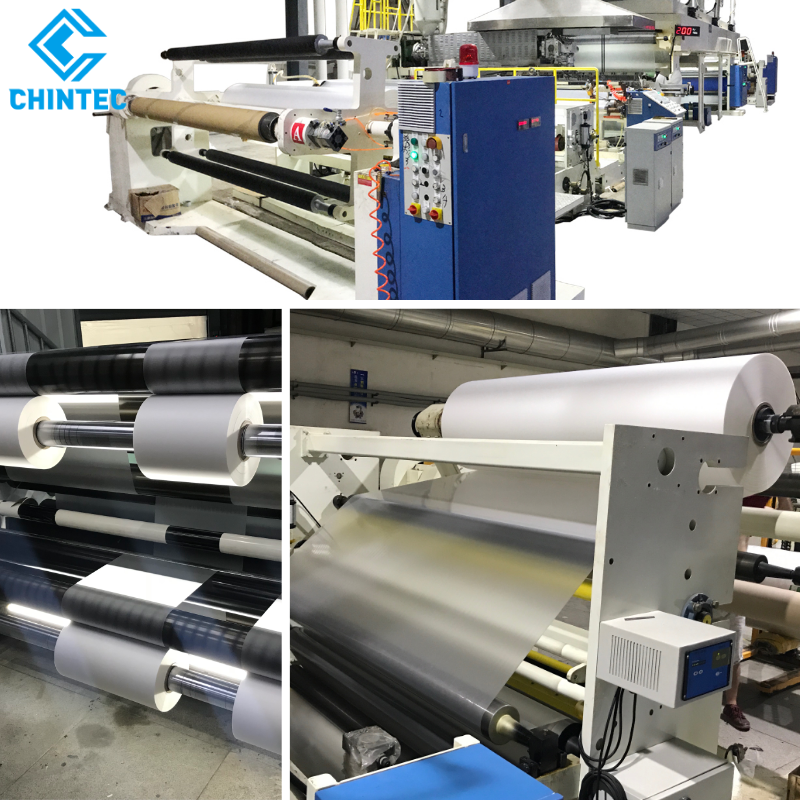

As a leading China professional Lamination Film manufacturer and supplier since 2012, we produce roll laminating films with thickness from 10μm to 250μm, holding a monthly capacity of 1,000 MTs of Thermal Laminating Film out of 10 high-speed producing lines, and 2,000 MTs of Cold Laminating Film.
We are committed to serving very good price laminating film while maintaining high product quality.
The certificates our product granted include MSDS, FDA, RoHS, REACH, EN 71-3, and so on.
|
Specifications |
||
 |
Thickness: | from 15micron to 30micron |
| Inner Core: | 1" (25mm), 2.25" (58mm), 3" (76mm), 6" (152mm) | |
| Roll Width: | from 180mm to 1880mm | |
| Roll Length: | from 300m to 6000m | |
| Corona Treatment: | Single or double sides | |
| Surface Tension: | 38/40/42/52 dynes | |
| Shelf Life: |
12 months |
|
|
Applications |
||
● Menus ● Brochures ● Magazines ● Documents ● Sweet Boxes ● Shopping Bags ● Textbook Covers |
 |
|
|
Operation Guide |
||
| Compound Temperature: | 85℃ - 105℃ (185℉ - 221℉) | |
| Compound Pressure: | 10-18 mpa | |
| Compound Speed: | 10-60 m/min | |
|
Classifications of Lamination Film (of both Thermal/Hot/Dry and Cold/Wet) |
||||
| By Format | By Function | By Transparency | By Finishing | |
| ● Roll Lamination Film ● Pouch Lamination Film ● Sheet Lamination Film |
● UV endurable ● Scuff-resistant ● Finger-print-free ● Super sticky |
|
● Glossy ● Matte ● Soft-touch ● Scratch resistance ● Textured ● Chemically treated |
|
| Packaging | ||
| For core 1" (25mm) or 2.25" (58mm) | For Core 3" (76mm inner dimension) | For Core 6" (152mm inner dimension) |
| • 6/9/12 rolls a carton (as per request) • 9 to 36 cartons a pallet (as per request) • Max pallet height 1.5m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service |
• One roll one carton • 9 to 36 cartons a pallet (as per request) • Max pallet height 2.2m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service |
• Floating pallet • One to three rolls a pallet • Max pallet height 2.1m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service |
 |
||
| Shipping & Delivery | ||
| • Seaport: Xiamen, Shanghai, Shenzhen, etc. • Airport: Xiamen, Shanghai, Guangzhou, etc. |
||
| FAQ | ||
| About Sample | About Order | About After-sale-service |
| • Free samples for testing • Roll sized 300mm x 100m • Special requirement accepted • Courier freight afforded by the receiver and will be refunded from the first order • For saving the cost, prepaid is recommended |
• Min. Order Quantity: 2 tonnes (2,000kgs) • Mixed roll width and length accepted • Delivery in 25 days for a 40HQ • Payment Terms: T/T, L/C • Price Terms: EXW, FOB, CNF, CIF |
• In case any bad quality rolls must be compensated • Quality guaranteed till 9 months |
