Good Surface Tension Printing Grade BOPA Nylon Film, Workable with High Speed Overprinting Operation

Printing grade BOPA nylon film is produced to meet up high expectations on the composite flexible packaging materials that require good surface tension for different types of inks.
It is workable for 6 colors or more overprinting ability at speed 60m/min or 80m/min.

Featuring easy laminating with other films and optimal printability & processibility, printing BOPA film is used for frozen and cooked foods, pickled vegetables, agricultural and aquatic products, or distilled goods packaging, after being compounded with CPP, CPE, PVDC, aluminum and so on.

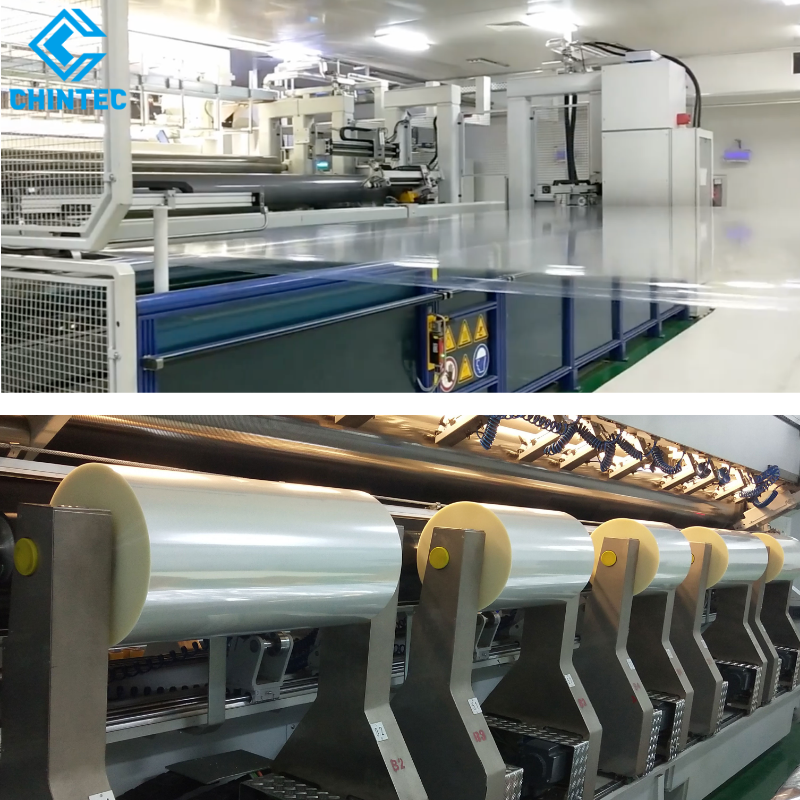

As a leading China professional BOPA Film manufacturer, we are powered with 6.6m-wide high-speed producing lines of Bruckner, holding monthly capacity 1,800 tons out of biaxial-orienting technologies of Sequential Stretching, Sequential State of  Art, Simultaneous Stretching and Linear Motor Simultaneous Stretching (LISIM), yielding thickness from 10micron to 30micron.

We are committed to serving a very good price printing BOPA Nylon film while maintaining high product quality.
The certificates our product granted include FDA, RoHS, REACH, CER, EC, and so on.

Specifications
	Thickness:	12, 19, 23, 25, 30micron
	Inner Core:	3" (76mm), 6" (152mm)
	Reel Width:	300mm ~ 2100mm
	Reel Length:	4000m ~ 32000m (upon thickness)
	Joint:	≤ 1
	Corona Treatment:	one side or both sides, ≥ 52 dynes
	Application:	packaging, printing
	Shelf Life:	12 months
Characteristics
● Optimal Printability & Processibility ● Easy Laminating with Other Films ● Excellent Mechanical Properties ● Excellent Haze & Gloss
Storage Guide
1. Avoid direct sunlight or drenching 2. Avoid to impact	3. Store below 25℃                                                  4. Humidity below 65% RH



Classifications of BOPA Nylon Film
Generic BOPA (Nylon) Film		Retort BOPA (Nylon) Film
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● Wide End-use Temperature Range (-60~150℃) ● Excellent Puncture & Impact Resistance ● Exceptional Burst & Tear Resistance ● Good Printability and Processibility ● Good Oils & Greases Resistance ● High Transparency & Luster	● Food ● Medical ● Electronic Material ● Daily Use Chemical ● Pharmaceuticals & Others	● Excellent Strength & Converting Performance ● Good Printability & Processibility ● Excellent Elongation	● Ham ● Chicken ● Sausage ● Other Fresh Food ● Retort Pouch Food Package ● 0 ~ 12 Colors Reversing Printing
Typical Thickness		Typical Thickness
● 10, 12, 13.5, 15, 20, 25, 30micron		● 15, 20micron
EVOH-BOPA (Nylon) Film		Printing BOPA (Nylon) Film
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● High Hydro-carbons, Oils & Organic Resistance ● Excellent Flex-crack Resistance ● High Barrier Performance ● Extend Product Shelf Life ● Crystal Clear	● Pipes ● Hydro Fuel Cells ● Drugs Packaging ● Cosmetics Packaging ● Delicate Food Packaging ● Pharmaceutical Packaging ● Perishable Food Packaging	● Optimal Printability & Processibility ● Easy Laminating with Other Films ● Excellent Mechanical Properties ● Excellent Haze & Gloss	● Crisp & Snacks  ● Pickled Vegetable  ● Block Hard Cheese  ● Aquatic Products ● Designer Balloons ● Frozen & Cooked Foods
Typical Thickness		Typical Thickness
● 15micron		● 12, 19, 23, 25, 30micron
Metallized BOPA (Nylon) Film		Linear Tear BOPA (Nylon) Film
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● Excellent Permeability to Light, Water & Oxygen ● High Gloss Mirror Appearance ● Extend Food Shelf Life ● Higher Toughness ● Heat Sealable	● Balloons ● Snack Foods ● Christmas Tinsels ● Frozen Vegetable ● Electronic Materials ● Coffee, Tea & Candy ● Sterilized Medical Products	● Good Printing & Laminating Ability ● Good Linear-cut Property ● Double Sides Corona ● Excellent Strength ● High Gas Barrier ● Easy Opening	● Frozen Food ● Medical Products ● Daily Use Chemical ● Thermal & Retort Food
Typical Thickness		Typical Thickness
● 10, 12, 15, 25micron		● 15micron
Matte BOPA (Nylon) Film		Cold-forming BOPA (Nylon) Film
Download Technical Data Sheet		Download Technical Data Sheet
Features	Applications	Features	Applications
● Simultaneously Convenient Processability ● One or Two Sides Corona Treatment ● Excellent Optical Property ● Higher Tensile Strength ● Low Haze & Gloss ● Low COF	● Foodstuff Packaging ● Printing & Hot Stamping ● Prime Sensory Packaging ● Paper Printings Lamination ● High-end Compound Material	● High Barrier to Light, Water Vapour & Gas ● Sealable with Aluminum Lidding Foil ● Wide Range Color & Print Options ● Excellent Thermal Stability ● Excellent Formability	● Pharmaceutical Products ● Foodstuff Blister Packaging
Typical Thickness		Typical Thickness
● 15micron		● 15, 20, 25, 30micron



Packaging
For Core 3" (76mm inner dimension)	For Core 6" (152mm inner dimension)
• Aluminum foil // Plywood // Plug // Carton // Pallet // Wrapping film • 9 reels per pallet  • Max pallet height 2.2m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service	• Aluminum Foil // Plywood // Plug // Pallet // Wrapping film •  4 or 2 reels per pallet • Max pallet height 2.1m • Weight according to roll sizes • Measures according to roll sizes • Available to customized service
Tips: • Carefully loading, avoid being crashed and prevent from rain and strong sunshine • Stored in clean and dry places • Well piled up, avoid being distorted or damaged by crushing • Keep 2 meters at least away from heating objects

BOPA (Nylon) Film Thickness, Reel Size & Paper Core
Thickness (μm/micron)	Reel Width(mm)	Reel Length (m)	Paper Core (inch)
10	300-2100	9000/18000/32000	3 (76mm) / 6 (152mm)
12	300-2100	7500/15000/22500	3 (76mm) / 6 (152mm)
13.5	300-2100	6500/13000	3 (76mm) / 6 (152mm)
15	300-2100	6000/12000/24000	3 (76mm) / 6 (152mm)
20	300-2100	4000/8000	3 (76mm) / 6 (152mm)
25	300-2100	4000/8000	3 (76mm) / 6 (152mm)
30	300-2100	4000/8000	3 (76mm) / 6 (152mm)



Shipping & Delivery

• Seaport: Xiamen, Shanghai, Shenzhen, etc. • Airport: Xiamen, Shanghai, Guangzhou, etc.



FAQ
About Sample	About Order	About After-sale-service
• Free samples for testing • Roll sized 300mm x 50m, or by sheet A4 • Special requirement accepted • Courier freight afforded by the receiver and will be refunded from the first order • For saving the cost, prepaid is recommended	• Min. Order Quantity: 2 tonnes (2,000kgs) • Mixed roll width and length accepted • Delivery in 25 days for a 40HQ • Payment Terms: T/T, L/C • Price Terms: EXW, FOB, CNF, CIF	• In case any bad quality rolls must be compensated • Quality guaranteed in 9 months
